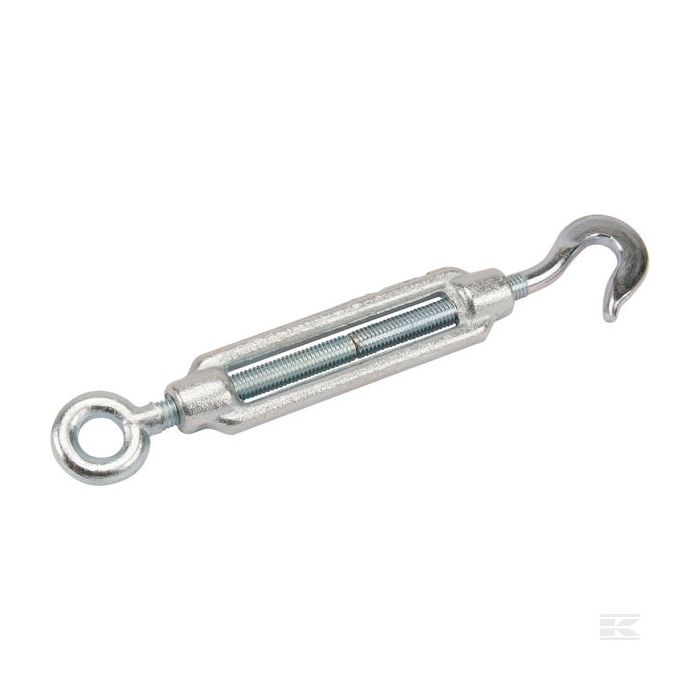

Turnbuckle Hook/Eye10mm.
A turnbuckle hook/Eye is a specific type of turnbuckle that has a hook on one end and a threaded eye on the other end. The round refers to the eye being round, rather than elongated. They are commonly used for applications where one end needs to be easily attached to a fixed point, like a pole or anchor, while the other end can be adjusted with the threaded eye.
Properties: Housing Open.
Working Range: 213-298 mm.
Head Type Connection no 1: Eye.
Head Type Connection no 2: Hook.
Thread Diameter: M10.
Breaking Load: 600 kgs.
Safe Work Load Capacity: 220 kgs.
PN Standard: 82269.
DIN Standard: 1480.
Surface Treatment : Zinc - Plated.
Total Length: 180 mm.
End Hook Width Of Opening: 13.5 mm.
End Eye/Hole Inside Diameter: 14 mm.
Body Outside Length: 125 mm.
| Manufacturer | KRAMP |
|---|
