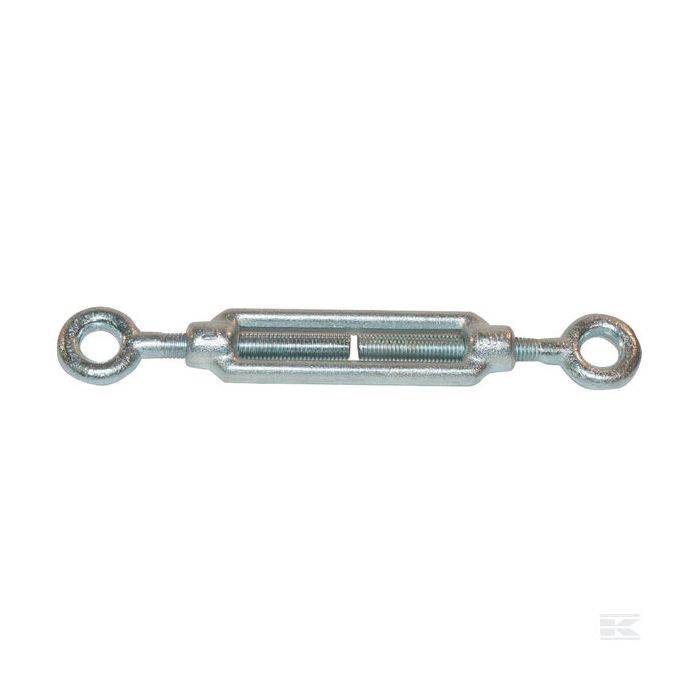

Turnbuckle Eye/Eye 16mm.
A turnbuckle, is a handy tool used to adjust the tightness or length of ropes, cables, and other tensioning systems. It typically consists of two threaded eye bolts screwed into a central body. Crucially, one eye bolt has a regular right-handed thread, while the other has a left-handed thread. By rotating the body itself, you can screw both eye bolts in or out at the same time, without twisting the cables attached to them. This allows for precise adjustments in tension.
Properties: Housing Open.
Working Range: 330-440 mm.
Head Type Connection no 1: Eye.
Head Type Connection no 2: Eye.
Thread Diameter: M16.
Breaking Load: 5000kg.
Safe Work Load Capacity: 600 kg.
PN Standard: 82269.
DIN Standard: 1480.
Surface Treatment: Zinc- Plated.
Total Length: 255 mm.
End Eye/Hole Inside Diameter: 22 mm.
Body Outside Length: 170 mm.
| Manufacturer | KRAMP |
|---|
