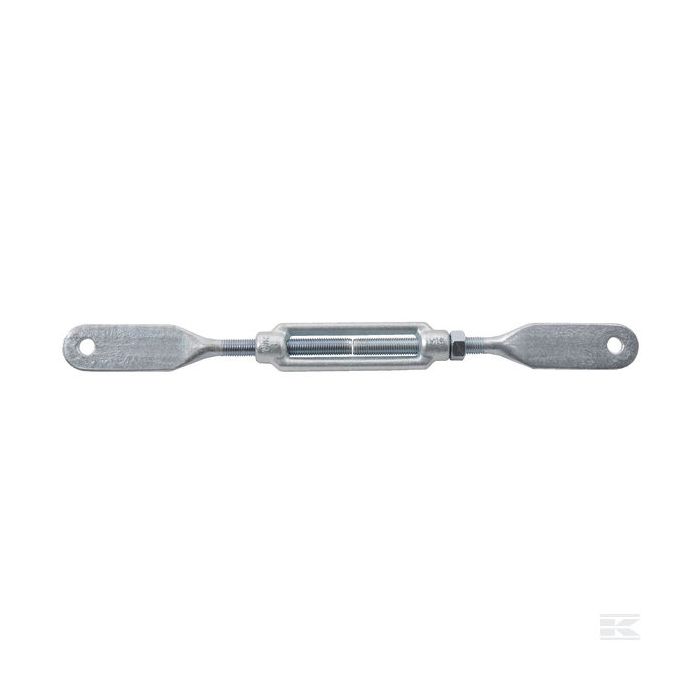

Turnbuckle 2 x Plane-Ends.
Turnbuckles are a handy tool used to adjust the tightness or length of ropes, cables, and other tensioning systems. They typically consist of two threaded eye bolts screwed into a central body. Crucially, one eye bolt has a regular right-handed thread, while the other has a left-handed thread. By rotating the body itself, you can screw both eye bolts in or out at the same time, without twisting the cables attached to them. This allows for precise adjustments in tension.
Properties: Housing Open.
Working Range: 500 - 667 mm.
Head Type Connection No 1: Plane.
Head Type Connection No 2 : Plane.
Thread Diameter: M20.
Thread Pitch: 2.00 mm.
Safe Work Load Capacity: 910 kg.
DIN Standard: 1480.
Surface Treatment: Zinc Plated.
Total Length: 500 mm.
End Eye/Hole Inside Diameter: 16.5 mm.
Width (Diameter) Of Package: 50 mm.
Length Of Package: 500 mm.
| Manufacturer | KRAMP |
|---|
