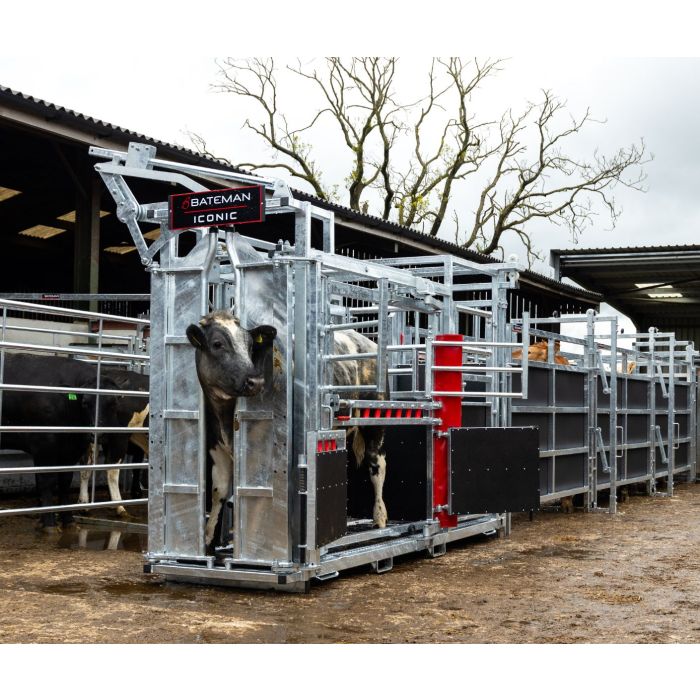

Bateman Iconic Cattle Crush FETF61

The iconic cattle crush has been in the design and manufacturing process for two years and bateman believe it will sucessfully fulfil the requirements for all cattle farmers with its ability to safely secure youngstock,commercial beef animals, pedigree show cattle and rare breeds.

Key Features:

• 850mm- 250mm Internal Width to handle all sizes of cattle
• Manually operated head yoke with Friction Lock mechanism to provide infinite locking
• Dual yoke operating levers enable the yoke to be controlled from the front or rear of the crush. Both can disengage from use for safety.
• Wheel operated squeeze mechanism with locking braked hub unit.
• Four lower side access gates and central gate with polyethylene ratchets for backing up bar.
• Additional row of ratchets in lower front gate
• Top access doors.
• TB Access doors
• 25mm diameter nylon rotary bolts
• Integral vet access kiosk with split doors. Doors close behind the animal in the crush to enable safe access for PD testing or similar.
• Rear sliding gate on nylon rollers with polyethylene lower track guides to reduce noise. Part clad on both side with 6mm polypropylene sheet. Lever operated self locking latch.
• Integral mounting brackets to attach Truest loadbars
• 25mm thick rubber floor with plate securing battens
• Brisket Rail fixing to RHS floor battens. Easily removed by releasing a single star knob.
• Forklift Brackets.

Specifications:

Length:  3555mm.

Internal Width:  850mm.

Overall Width:  950mm.

Height:  1730mm.

Overall Height:  2620mm.

Yoke Aperture Width:  850mm to 110mm.

Weight:  1045kg.

Standard/Optional Extras:

Load Bars:   •

Foot Trim: x

Forklift Brackets: √

Chin Scoop: •

• Optional Extra.

x Not Available.
