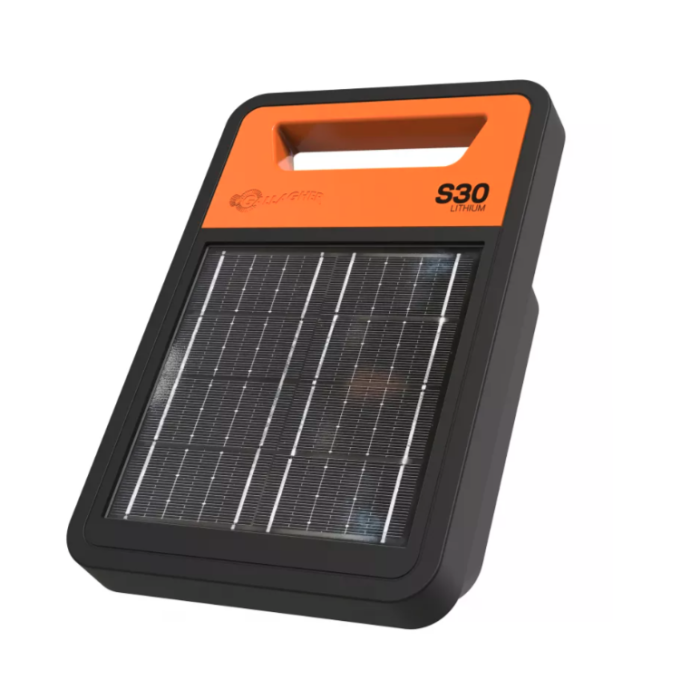

Gallagher S30 Electric Fence Solar Energiser

The S30 Solar energiser is a compact and lightweight solar energiser supplied with a lithium battery, it requires minimum maintenance and there is no need to replace the battery because it is dead.

The compact design of the S30 may suggest it may not be powerful, but it is suitable to contain horses, cows,and pigs on fences shorter than 3 Km.

The S30 is supplied with a powerful litium battery which itself is very compact, has very little self discharge, lasts longer and can be charged 3 times faster. Charging can be done by simply turning off the device so that the battery is recharged by light. The energiser can be used all year round thanks to its patented battery management system which allows it to function for up to 3 weeks without direct sunlight.It also has a built in lightning protection.

The robust design of the S30 energiser ensures it can withstand the harshest of weather conditions and deliver reliable consistant performance all year round. The housing is fully sealed providing good protection against moisture and insects.

Gallagher back up the lithium range with a 3 year warranty on the lithium battery and a total product warranty of 7 years.

 Advice for use:

• Make sure the solar panel is free from grass to allow the best use of the energiser.
• The special stand (Part : 571126) can be attached to a wooden post or earth stake.
• After purchase , we recommend leaving the device out for 3 days and placing it in direct daylight so that it fully charges.
• If the device is temporarily not in use, we recommend storing it in a dark, dry well ventilated place.

Overview:

Animal type: Cat, Catlle, Dog, Goat, Horse, Pig, Rabbit ,Sheep.

Output with 500 Ohm (V): 2800

Voltage with 100 Ohm (V): 1800

Stored Energy (J): 0,3

Output Energy (J): 0,21

Single Wire Fence distance - Ideal conditions (km): 10

Multi (2) Wire Fence distance - Ideal conditions (km): 3

Multi (2) Wire Fence distance - Light conditions (km) : 2

Multi (3) Wire Fence distance - Recommended (km): 1,5

Grid area (Hec/Acre) : 1.5/3

Maximum output Voltage: 9300

Avg. current draw Battery (V/mA)  : 3,2V/67

Days operational with no daylight: ^20 days

Device indicator light On/Off: ✓

Battery LED (indicator): ✓

Battery safemode: ✓

Auto power conservation to prevent damage to battery: ✓

Night savings option: ✓

Normal - slow pulse mode: ✓

Build-in solar panel: 3,8W

Fence connection wire included: ✓

Rechargeable Battery included: ✓

Recommended number of earth stakes: 1x1m

Suitable Stand (height): 571126

IPX classification: IPX4

Warranty (years): 3

Weight (Kg): 1,4
