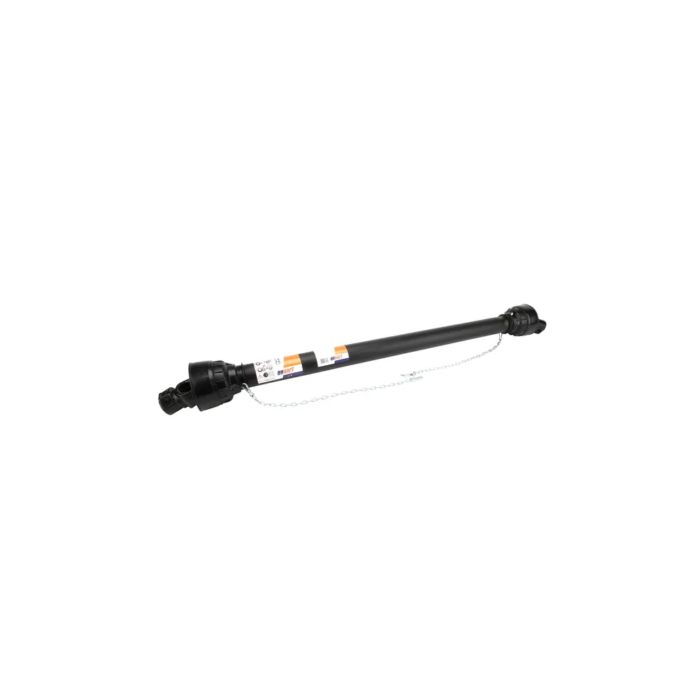

PTO Shaft 10L 560MM gopart

PTO Shaft 10L 560MM gopart.

PTO shafts standard series 10 for log splitters, crop sprayers and fertiliser spreaders etc.

 Max. dynamic capacity 540 rpm: 12 kW, 210 Nm

Max. dynamic capacity 1000 rpm: 18 kW, 170 Nm,

Connection outside diameter by tractor side, 1-3/8 Inch,

Connection number of splines/grooves by tractor side, 6,

Locking type by tractor side, Collar lock,

Attachment tractor side, Quick disconnect yoke,

Connection outside diameter by machine side, 1-3/8 Inch,

Connection number of splines/grooves by machine side, 6,

Locking type by machine side, Collar lock,

Attachment machine side, Quick disconnect yoke,

Size code, PTO 10,

Length, 560 mm,

Power 540 rpm, 12 kW,

Power 1000 rpm, 18 kW,

Cross joint bush diameter by tractor side, 22 mm,

Cross joint length by tractor side, 54 mm,

Cross joint bush diameter by machine side, 22 mm,

Cross joint length by machine side, 54 mm,

Clutch type, n/a,

Outer tube wall thickness, 3,2 mm,

Outer tube large outside diameter, 36 mm,

Inner tube wall thickness, 4 mm,

Inner tube large outside diameter, 29 mm,

Profile tube shape, Triangular,

Max dynamic torque, 320 N·m,

Connection outside diameter by tractor side, 1-3/8 Inch,

Connection number of splines/grooves by tractor side, 6,

Locking type by tractor side, Collar lock,

Attachment tractor side, Quick disconnect yoke,

Connection outside diameter by machine side, 1-3/8 Inch,

Connection number of splines/grooves by machine side, 6,

Locking type by machine side, Collar lock,

Attachment machine side, Quick disconnect yoke,

Size code, PTO 10,

Length, 560 mm,

Power 540 rpm, 12 kW,

Power 1000 rpm, 18 kW,

Cross joint bush diameter by tractor side, 22 mm,

Cross joint length by tractor side, 54 mm,

Cross joint bush diameter by machine side, 22 mm,

Cross joint length by machine side, 54 mm,

Clutch type, n/a,

Outer tube wall thickness, 3,2 mm,

Outer tube large outside diameter, 36 mm,

Inner tube wall thickness, 4 mm,

Inner tube large outside diameter, 29 mm,

Profile tube shape, Triangular,

Max dynamic torque, 320 N·m,

• Meets all international safety requirements
• Provided with "CE" marking
