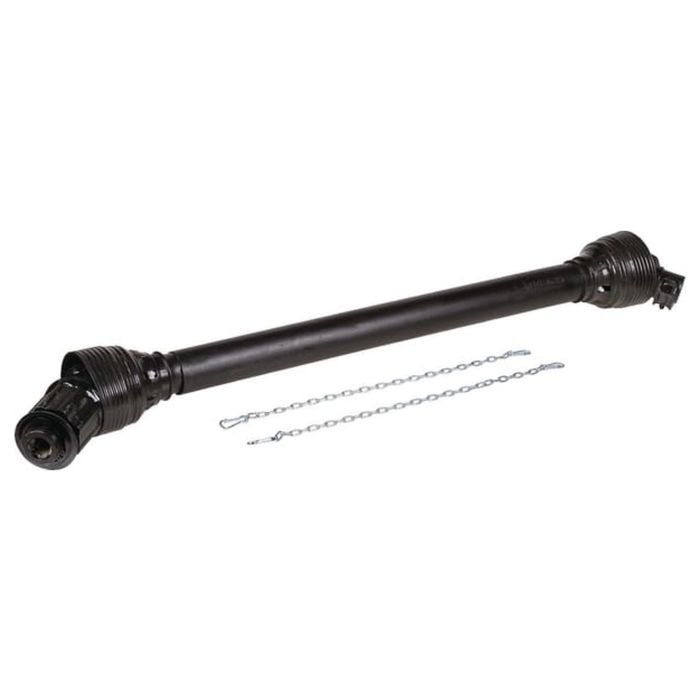

PTO Shaft 20 L 1310mm gopart

PTO Shaft 20 L 1310mm gopart

Technical information:

PTO20 Max dynamic power : 540rpm: 15kW Max dynamic power 1000rpm: 23kW.

PTO40 Max dynamic power 540rpm: 26kW Max dynamic power 1000rpm: 40kW PTO50 Max dynamic power 540rpm: 35kW Max dynamic power 1000rpm:

Outer diameter of the larger outer pipe: 43,5 mm

Pipe profile shape: Triangular

Tractor Side Connection O.D.: 1-3/8 in.

Tractor side connection type: Flanged valve

Power at 1000 rpm: 23 kW

Machine Side Connection O.D.: 1-3/8 inch

Machine side cross sleeve diameter: 23,8 mm

Features: Meets all international safety requirements

Machine Side Connection Type: Flanged Gate Valve

Tractor side cross bushing diameter: 23,8 mm

Outer diameter of the larger inner tube: 36 mm

Inner tube wall thickness: 3,2 mm

Number of machine side connection grooves: 6

Dynamic torque max.: 450 N m

Tractor side attachments: Quick hitch fork

Clutch type: n/a

Clutch torque max.: 900 N m

Tractor side crosspiece length: 61,3 mm

Number of connection grooves on the tractor side: 6

Crosspiece length on machine side: 61,3 mm

EAN: 8719493073942

Part number: PTO20Y21T1310ARTGP

Power at 540 rpm: 15 kW

Machine Side Extras: Ratchet Clutch

Shaft size: PTO 20

Outer pipe wall thickness: 3,4 mm
