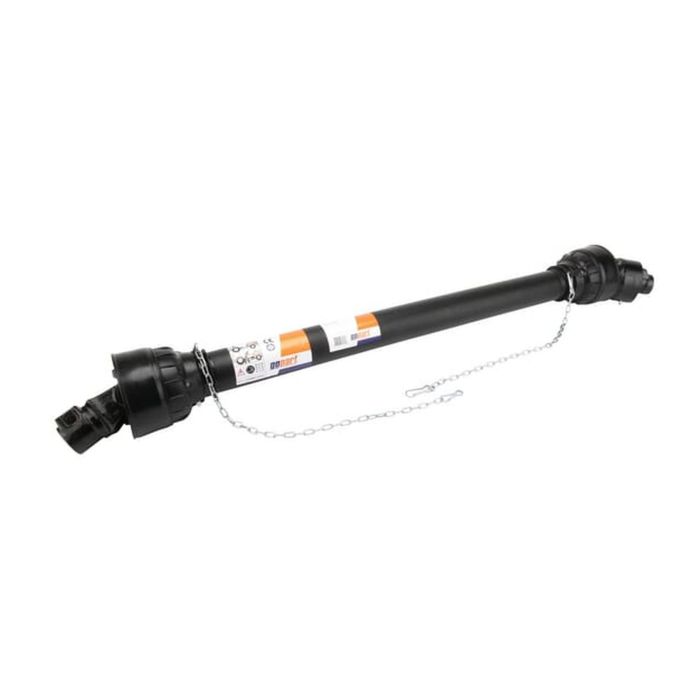

PTO Shaft PTO 50L:1210mm With Overrunning Clutch,gopart

PTO Shaft PTO 50L:1210mm With Overrunning Clutch,gopart.

PTO shaft with freewheeling clutch attached, a cost-effective alternative in the lower power range.

Product meets all International Safety Requirements.

• PTO40
• dynamic capacity 540 rpm: 26kW, 460Nm
• dynamic capacity 1000 rpm: 40kW, 380Nm
•
• PTO50
• dynamic capacity 540 rpm: 35kW, 620Nm
• dynamic capacity 1000 rpm: 54kW, 515Nm
•
• PTO60
• dynamic capacity 540 rpm: 47kW, 830Nm

Max. dynamic capacity 1000 rpm: 74kW, 710Nm

Connection outside diameter by tractor side                       1-3/8 Inch

Connection number of splines/grooves by tractor side      6

Locking type by tractor side                                                   Collar lock

Attachment tractor side                                                           Quick disconnect yoke

Connection outside diameter by machine side                     1-3/8 Inch

Connection number of splines/grooves by machine side    6

Locking type by machine side                                                 Collar lock

Attachment machine side    Overrunning clutch

Size code                              PTO 50

Length                                 1210 mm

Power 540 rpm                    35 kW

Power 1000 rpm                  54 kW

Cross joint bush diameter by tractor side               30.2 mm

Cross joint length by tractor side                             79.6 mm

Cross joint bush diameter by machine side            30.2 mm

Cross joint length by machine side                          79.6 mm

Clutch type                                                                   n/a

Outer tube wall thickness                                           3 mm

Outer tube large outside diameter                             51.5 mm

Inner tube wall thickness                                            3.8 mm

Inner tube large outside diameter                              45 mm

Profile tube shape                                                        Triangular
