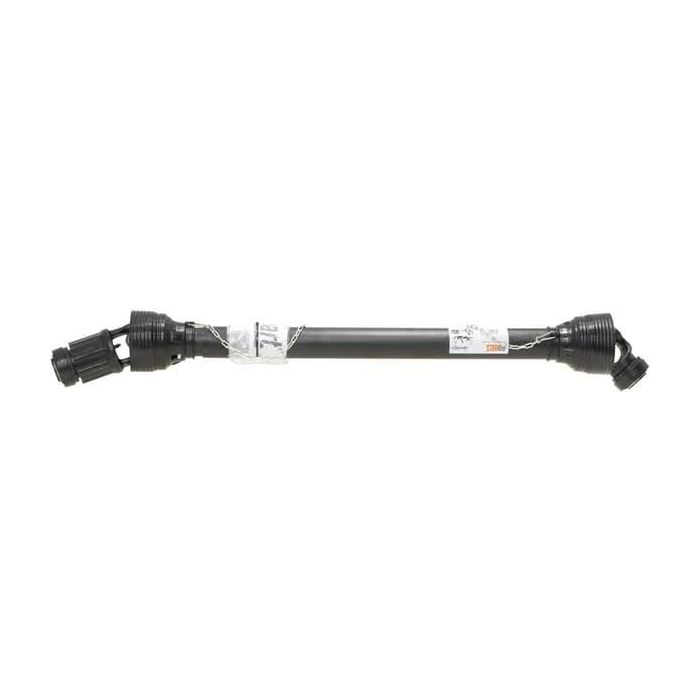

PTO Shaft PTO 60 L 1010mm gopart

PTO Shaft PTO 60 L 1010mm gopart.

PTO shafts with attached radial pin clutches suitable for various agricultural machines which are cost effective in lower power range.

Meets all international safety requirements.

• PTO20
• dynamic capacity 540 rpm: 15 kW
• dynamic capacity 1000 rpm: 23 kW
•
• PTO40
• dynamic capacity 540 rpm: 26 kW
• dynamic capacity 1000 rpm: 40 kW
•
• PTO50
• dynamic capacity 540 rpm: 35 kW
• dynamic capacity 1000 rpm: 54 kW
•
• PTO60
• dynamic capacity 540 rpm: 47kW

Max. dynamic capacity 1000 rpm:74kW

Connection outside diameter by tractor side: 1-3/8 Inch

Connection number of splines/grooves by tractor side: 6

Locking type by tractor side: Collar lock

Attachment tractor side: Quick disconnect yoke

Connection outside diameter by machine side: 1-3/8 Inch

Connection number of splines/grooves by machine side: 6

Locking type by machine side: Collar lock

Attachment machine side: Radial pin clutch

Size code: PTO 60

Power 540 rpm: 47 kW

Power 1000 rpm: 74 kW

Cross joint bush diameter by tractor side: 30.2 mm

Cross joint length by tractor side:  91.4 mm

Cross joint bush diameter by machine side: 30.2 mm

Cross joint length by machine side: 91.4 mm

Clutch type: n/a

Max. clutch torque: 1000 N·m

Outer tube wall thickness: 4 mm

Outer tube large outside diameter: 54 mm

Inner tube wall thickness: 5.5 mm

Inner tube large outside diameter: 45 mm

Profile tube shape: Triangular
