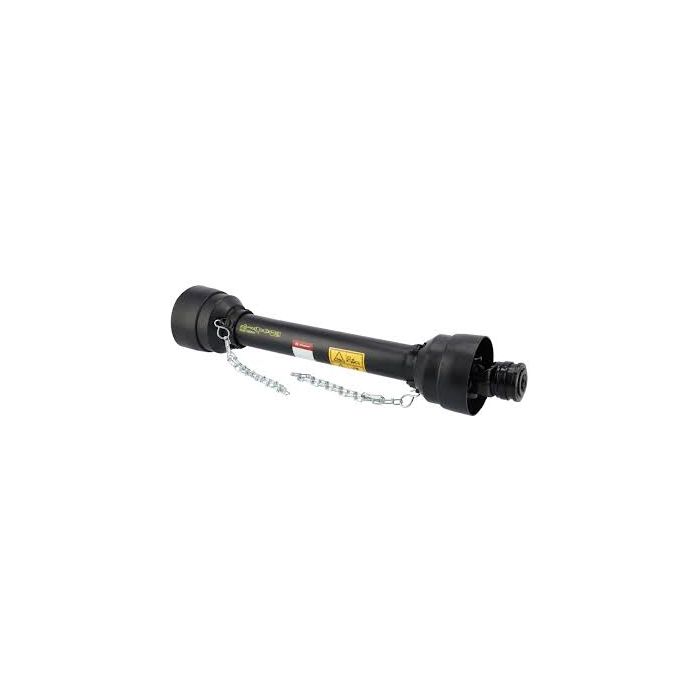

PTO Drive shaft T40 L=1010mm
T40101SC12B02KR
PTO Drive shaft T40 L=1010mm .
A Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc.
- Max. dynamic capacity 540 rpm - 26 kW - 460 Nm
- Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm
- Values at working angle 5° and service life 1000 hours
- Lubrication interval: 8 hours
- CE and UKCA certified.
Connection outside diameter by tractor side: 1-3/8 Inch.
Connection number of splines/grooves by tractor side: 6
Locking type by tractor side: Collar Lock.
Attachment tractor side: Quick disconnect yoke.
Connection outside diameter by machine side: 1-3/8 Inch.
Connection number of splines/grooves by machine side: 6.
Locking type by machine side: Push Pin.
Attachment machine side: Shear bolt clutch.
Size Code: T40.
Length: 1010mm.
Power 540 rpm: 26kW.
Power 1000 rpm: 40 kW.
Cross joint bush diameter by tractor side: 27mm.
Cross joint length by tractor side: 74.6mm.
Cross joint bush diameter by machine side: 27mm.
Cross joint length by machine side: 74.6mm.
Clutch type: B02.
Max. clutch torque: 1700 N·m.
Outer tube wall thickness: 3.4mm.
Outer tube large outside diameter: 43.5mm.
Inner tube wall thickness: 4.5mm.
Inner tube large outside diameter: 36mm.
Profile tube shape: Triangular.
Max dynamic torque: 780 N·m
| Manufacturer | Kramp |
|---|
