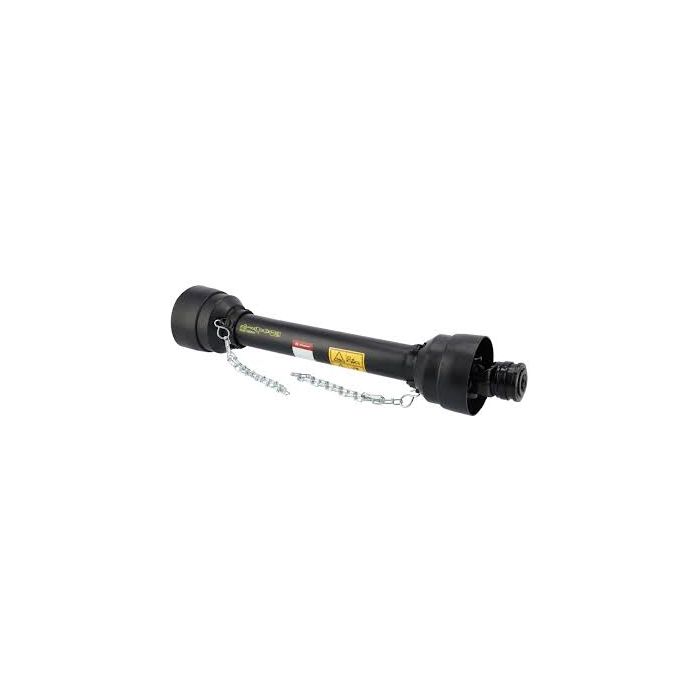

PTO shaft PTO 50 L 1010mm, Kramp
T50101SC12B02KR
PTO shaft T50 L: 1010mm.
A Cost-effective alternative in the PTO range and suitable for log splitters, manure spreaders, mowers, harvesting machenery etc.
- Max. dynamic capacity 540 rpm - 35 kW - 620 Nm
- Max. dynamic capacity 1000 rpm - 54 kW - 520 Nm
- Values at working angle 5° and service life 1000 hours
- Lubrication interval: 8 hours
- CE and UKCA certified
Techicnicaal information:
Connection outside diameter by tractor side: 1-3/8 Inch.
Connection number of splines/grooves by tractor side: 6.
Locking type by tractor side: Collar Lock.
Attachment tractor side: Quick disconnect yoke.
Connection outside diameter by machine side: 1-3/8 Inch.
Connection number of splines/grooves by machine side: 6.
Locking type by machine side: Push Pin.
Attachment machine side: Shear bolt clutch.
Size Code: T50.
Length: 1010mm.
Power 540 rpm: 35kW.
Power 1000 rpm: 54kW.
Cross joint bush diameter by tractor side: 30.2mm.
Cross joint length by tractor side: 80mm.
Cross joint bush diameter by machine side: 30.2mm.
Cross joint length by machine side: 80mm.
Clutch type: BO2.
Max. clutch torque: 2100 N·m.
Outer tube waall thickness: 3mm.
Outer tube large outside diameter: 51.6mm.
Inner tube wall thickness: 4mm.
Inner tube large outside diameter: 45mm.
Profile tube shape: Triangular.
Max dynamic torque: 1050 N·m.
| Manufacturer | Kramp |
|---|
