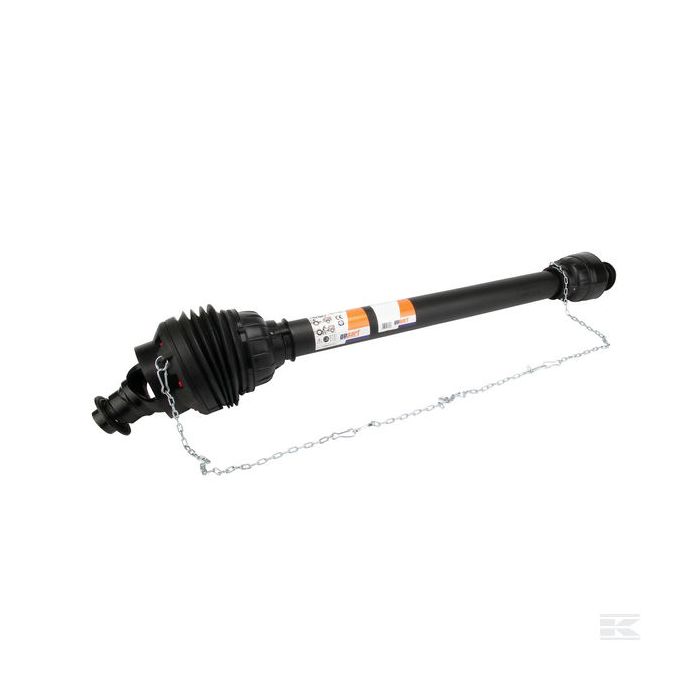

Wide angle PTO shaft PTO 50 L: 1010mm gopart

Wide angle PTO shaft PTO 50 L: 1010mm, gopart.

Wide-angle PTO shaft series 50 cost-effective alternative for machines in the lower power range

• Max. dynamic capacity 540 rpm: 47kW
• Max. dynamic capacity 1000 rpm: 74kW

Techicnical information:

Connection outside diameter by tractor side:  1-3/8 Inch.

Connection number of splines/grooves by tractor side:  6.

Locking type by tractor side:  Collar Lock.

Connection outside diameter by machine side: 1-3/8 Inch.

Connection number of splines/grooves by machine side:  6.

Locking type by machine side:  Collar lock.

Size code: PTO 50.

Length: 1010mm.

Power 540 rpm:  47 kW.

Power 1000 rpm:  74 kW.

Cross joint bush diameter by tractor side:  30mm.

Cross joint length by tractor side:  100mm.

Cross joint bush diameter by machine side: 30.2 mm.

Cross joint length by machine side: 91.4mm.

• Fulfils all international safety requirements
• CE marking available.
