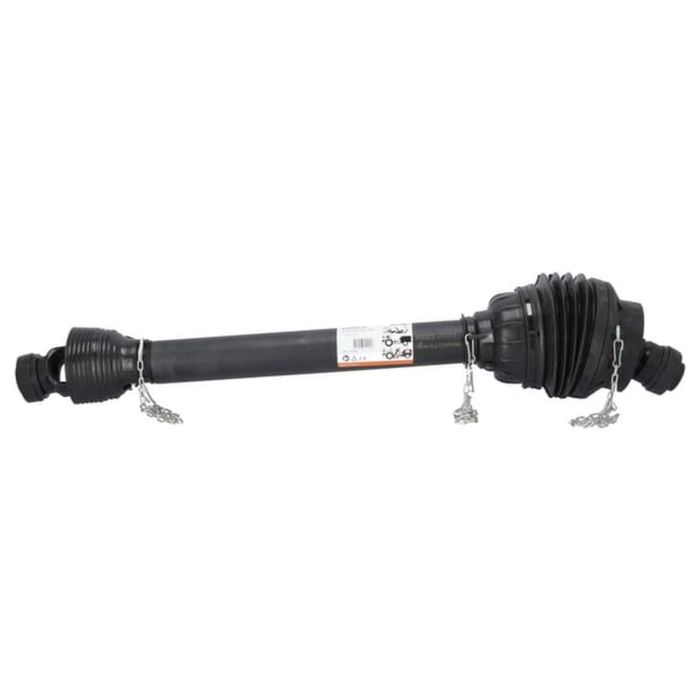

Wide Angle PTO Shaft PTO 50 L: 1210mm gopart

Wide-angle PTO shaft series 50 cost-effective alternative for machines in the lower power range.

Meets all international safety requirements.

Max. dynamic capacity 540 rpm: 47kW

Max. dynamic capacity 1000 rpm: 74kW

Connection outside diameter by tractor side: 1-3/8 Inch

Connection number of splines/grooves by tractor side: 6

Locking type by tractor side: Collar lock

Connection outside diameter by machine side: 1-3/8 Inch

Connection number of splines/grooves by machine side: 6

Locking type by machine side: Collar lock

Size code: PTO 50

Length: 1210 mm

Power 540 rpm: 47 kW

Power 1000 rpm: 74 kW

Cross joint bush diameter by tractor side: 30 mm

Cross joint length by tractor side: 100 mm

Cross joint bush diameter by machine side: 30.2 mm

Cross joint length by machine side: 91.4 mm
