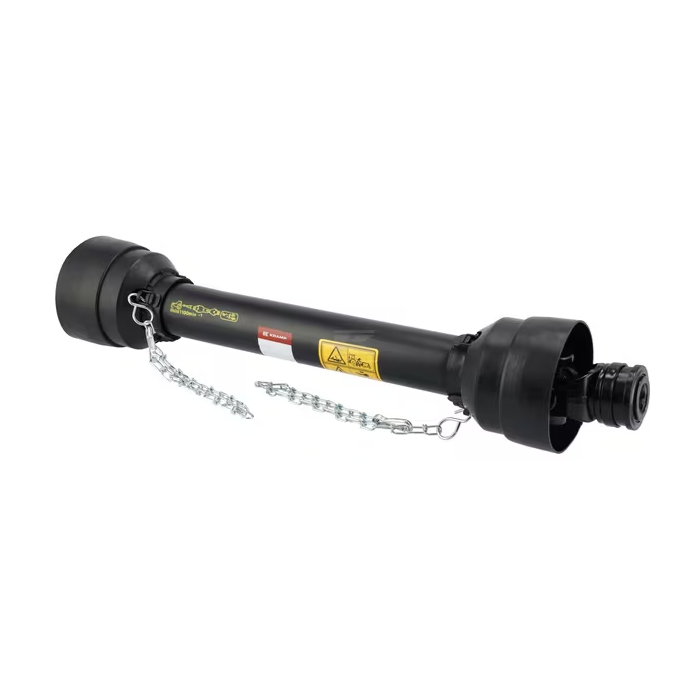

PTO drive shaft T10 Length 560mm
T10056SC12C12KR
In stock
Product Description
| Product details |
|
|---|
| Connection outside diameter by tractor side |
1-3/8 Inch
|
|
|---|---|---|
| Connection number of splines/grooves by tractor side |
6
|
|
| Locking type by tractor side |
Collar lock
|
|
| Attachment tractor side |
Quick disconnect yoke
|
|
| Connection outside diameter by machine side |
1-3/8 Inch
|
|
| Connection number of splines/grooves by machine side |
6
|
|
| Locking type by machine side |
Collar lock
|
|
| Attachment machine side |
Quick disconnect yoke
|
|
| Size code |
T10
|
|
| Length |
560 mm
|
|
| Power 540 rpm |
12 kW
|
|
| Power 1000 rpm |
18 kW
|
|
| Cross joint bush diameter by tractor side |
22 mm
|
|
| Cross joint length by tractor side |
54 mm
|
|
| Cross joint bush diameter by machine side |
22 mm
|
|
| Cross joint length by machine side |
54 mm
|
|
| Outer tube wall thickness |
2.6 mm
|
|
| Outer tube large outside diameter |
32.5 mm
|
|
| Inner tube wall thickness |
3.5 mm
|
|
| Inner tube large outside diameter |
26.5 mm
|
|
| Profile tube shape |
Triangular
|
|
| Max dynamic torque |
320 N·m
|
More Information
| Manufacturer | Kramp |
|---|
